L-Block End Carriage by Energy Tech Crane

Components

End Carriage — L-Block

Q: What capacity range do you manufacture in end carriages?

We build L-Block end carriages for crane duties up to 50 Ton, machined to your wheel base, rail gauge and rail section. Every unit is designed to IS:3177 / IS:4137 and FEM 1.001 duty classifications, and custom capacities are engineered on request.

Q: What's the benefit of the L-Block design?

The machined block wheel housing allows a wheel change in under an hour without disturbing the axle alignment — minimising crane downtime.

Q: Will the end carriage match my existing bridge girder?

Yes, we manufacture to your girder end dimensions, wheel base and rail gauge — share your drawing and we'll confirm fitment before dispatch.

Q: Why choose an L-Block end carriage over an open type?

The L-block design carries the wheel in a bolted block that can be removed sideways, so a worn wheel is changed without dismantling the whole carriage or lifting the bridge — valuable on cranes that cannot afford long downtime.

Q: What wheel material and hardness do you supply?

Wheels are forged EN-8 or EN-9 steel with machined treads and induction-hardened running surfaces, mounted on sealed bearings in plummer blocks for long life under continuous duty.

Q: How do you ensure the carriage stays square on the rails?

Mating faces are machined and joints are jig-drilled so the wheel axes stay parallel within tolerance. Correct squareness is what stops crabbing, uneven flange wear and rail damage over the crane's life.

Q: Can you match an end carriage to a crane built by someone else?

Yes — we regularly supply replacements for other makes. Provide the wheel diameter, wheel base, rail size and capacity, and we build a carriage that bolts straight onto your existing girder.

Q: What buffers and travel drives are fitted?

Rubber, spring or hydraulic buffers are selected by travel speed and capacity, with geared travel motors sized to your duty cycle and VFD-ready for soft start and stop.

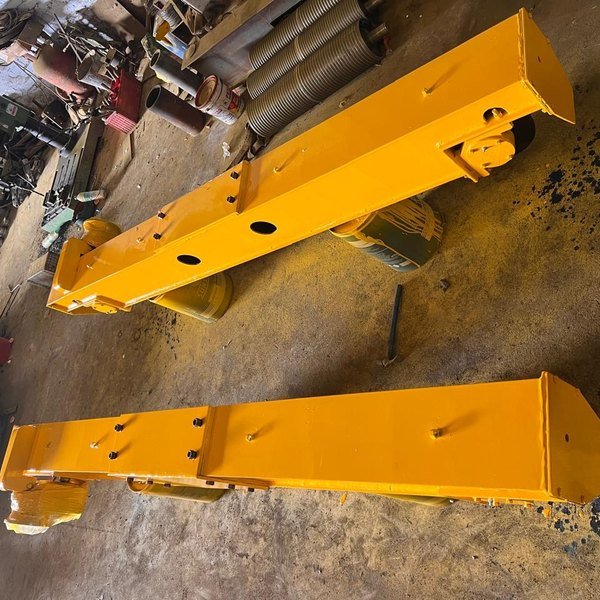

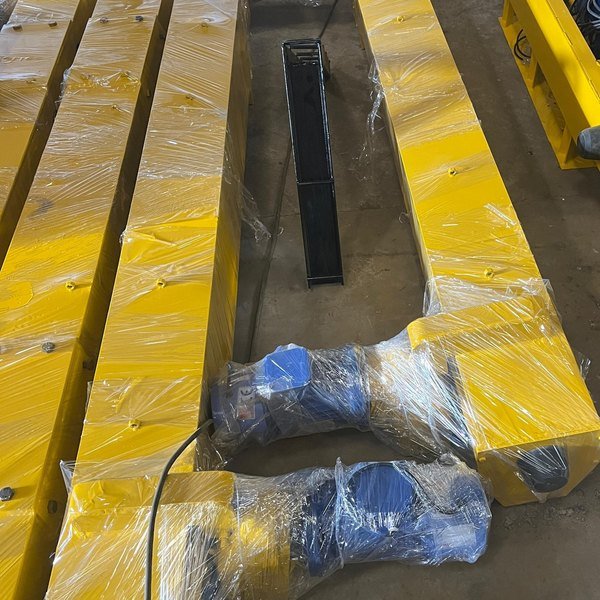

L-Block end carriages with machined block-type wheel housings — the modern, maintenance-friendly standard where wheel assemblies swap out in under an hour. Supplied in pairs with LT drives, buffers and rail sweeps.

Capacity Range	Up to 50 Ton
Wheel Dia	160 – 400 mm
Wheel Type	Forged EN-8/EN-9, double flanged
Housing	Machined L-block, bolt-on
Drive	SEW-style geared motor / ETC drive
Buffer	Rubber / spring / hydraulic
Span Connection	Machined mating faces
Wheel Change	< 1 hour, no girder lift
Standards	IS:3177 · IS:807

Get Quote in 24 Hrs WhatsApp Call Now

Technical Details

Built To Standard, Tested Beyond It

WheelHardened tread, 300–350 BHN

BearingSpherical roller, sealed

AlignmentJig-drilled bolt patterns

Rail SweepFitted both ends

Antidrop PlatesFitted per IS:3177

SupplyPairs, with drives & buffers

Wheel ChangeBlock housing — swap under an hour

BuffersRubber / spring / hydraulic

The ETC Quality Promise

125% SWL load test before every dispatch, documented & stamped
IS:2062 tested plates with mill certificates on file
IS:3177 / IS:4137 / FEM 1.001 compliant design calculations
Stress-relieved fabrication at critical welded joints
ISO 9001:2015 certified manufacturing process

About This Product

Engineered For Indian Industry

End carriages carry the whole crane — and its load — on four wheels, so wheel quality and alignment decide how long your rails last. L-Block housings hold each wheel-bearing assembly in a machined block bolted to the carriage: when a wheel wears, you unbolt the block, slide in a spare and run again within the hour — no girder jacking, no hot works.

ETC machines mating faces and jig-drills bolt patterns so girder-to-carriage joints assemble square every time. Wheels are forged EN-8/EN-9 with hardened treads gauged to your rail size, and every carriage ships with rail sweeps, antidrop plates and buffers fitted.

Rebuilding an old crane?

Send wheel base, span and capacity — we supply matched end-carriage pairs with drives ready to bolt on.

Key Features

Jig-drilled joints — square assembly, always
Hardened forged wheels — 300–350 BHN tread
Fast wheel change — block swap under 1 hour
Sealed SRB bearings — grease-for-life option
Complete kit — drives, buffers, sweeps
Retrofit friendly — for cranes of any make

Applications

Where This Machine Earns Its Keep

Steel & Rolling Mills

Billet handling, coil movement and furnace charging in continuous duty cycles.

Fabrication Workshops

Positioning heavy weldments and machined assemblies with precise inching control.

Foundries & Forging

Ladle handling and die movement engineered for heat and dust environments.

Warehousing & Logistics

Fast, safe loading and unloading across storage bays and dispatch yards.

Infrastructure Projects

Precast segment and girder erection at bridge, metro and dam sites.

Power & Energy Plants

Turbine hall maintenance cranes built to strict duty classifications.

Safety First

Safety Features As Standard

Overload Limiter

Electronic load cell cuts hoisting the moment load exceeds rated SWL.

⬆ Upper/Lower Limit Switches

Rotary geared and counterweight limits stop hook over-travel in both directions.

Motion Warning Hooter

Audible alarm and flasher warn floor staff during LT/CT travel.

Fail-Safe DC Brakes

Electromagnetic brakes engage automatically on power failure — load holds instantly.

Pendant + Radio Remote

IP-65 push-button pendant with optional wireless remote and emergency stop.

Panel Protection

SPP, overload relays and single-phase preventers protect motors and VFDs.
