Wire Rope Hoist

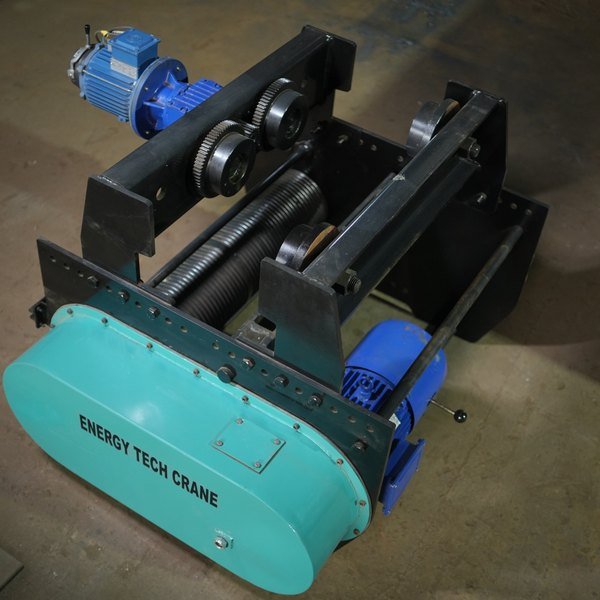

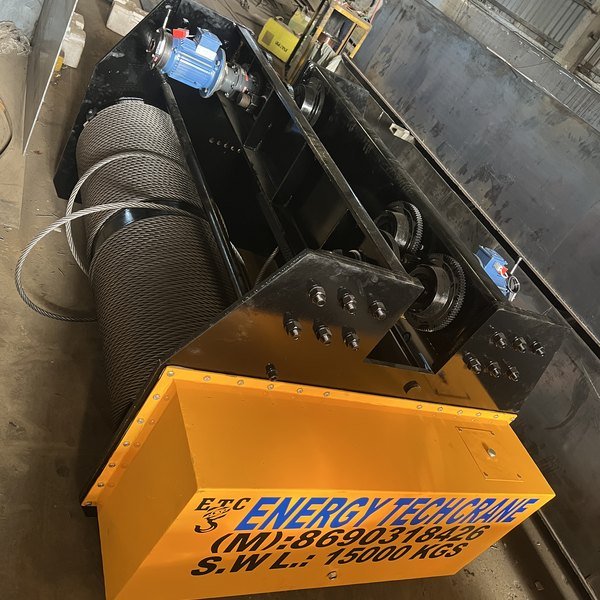

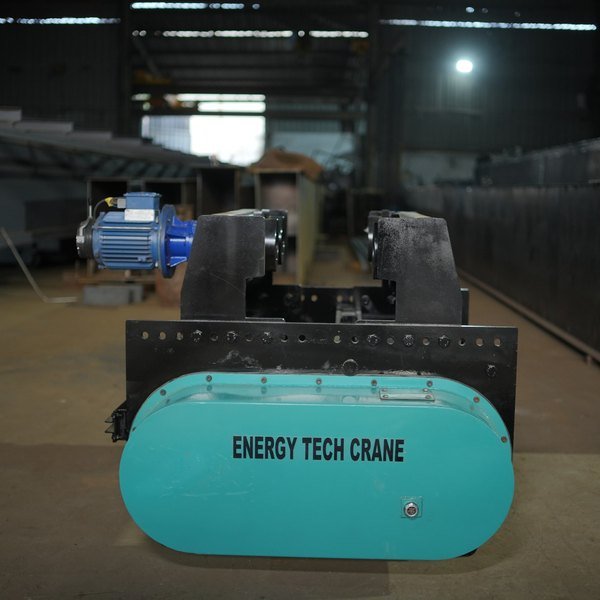

Compact electric wire rope hoist to IS:3832 — machined rope drum, grade IWRC rope, fail-safe DC brake and Class II/III duty gearbox. The lifting heart of every ETC single-girder crane, also supplied loose for monorails and existing cranes.

Capacity	0.5 – 30 Ton
Lift Height	6 / 9 / 12 m (custom up to 30 m)
Rope Reeving	2/1 · 4/1 · 4/2
Hoist Speed	3.5 – 8 m/min (dual speed optional)
CT Speed	20 m/min
Duty Class	Class II / III per IS:3832
Motor	Crane-duty, S4 40% CDF
Brake	DC electromagnetic disc
Standards	IS:3832 · FEM 1.001

Get Quote in 24 Hrs WhatsApp Call Now

Technical Details

Built To Standard, Tested Beyond It

DrumSeamless pipe, machined grooves

Rope6×36 IWRC, FoS 5:1

GearboxHardened & ground gears

HookForged, IS:15560, with latch

Limit SwitchRotary geared type

TrolleyMotorised / push travel

OverloadSlip clutch, factory-set

DutyClass II / III, M3–M6

The ETC Quality Promise

125% SWL load test before every dispatch, documented & stamped
IS:2062 tested plates with mill certificates on file
IS:3177 / IS:4137 / FEM 1.001 compliant design calculations
Stress-relieved fabrication at critical welded joints
ISO 9001:2015 certified manufacturing process

About This Product

Engineered For Indian Industry

A hoist is only as good as its drum, rope and brake. ETC machines every rope drum with precision grooves for perfect rope seating, uses grade IWRC ropes with a minimum 5:1 factor of safety, and fits fail-safe DC disc brakes that hold full load instantly on power failure.

Gearboxes run hardened-and-ground gears in oil bath for silent, long-life operation, and crane-duty motors are rated S4-40% CDF for real industrial cycles — not catalogue optimism. Dual-speed and VFD hoisting options give creep control for precision jobs like die setting.

Replacing an old hoist?

Send your beam flange width, capacity and lift — we match a drop-in ETC hoist with delivery in weeks, not months.

Key Features

Machined rope drum — perfect rope life
Fail-safe DC brake — holds load on power cut
True vertical lift option — 4/2 reeving
Dual speed / VFD — creep for precise placement
Forged safety hook — IS:15560 with latch
Loose supply available — for your existing crane

Applications

Where This Machine Earns Its Keep

Machine Shops

Loading jobs onto lathes, VMCs and machining centres safely and quickly.

Assembly Lines

Repetitive lifting on production lines with smooth variable speeds.

Stores & Dispatch

Palletised and bundled material movement in godowns and yards.

Process Plants

Maintenance lifts around pumps, gearboxes and process equipment.

Agro & Pump Industry

Handling castings, motors and pump assemblies through test beds.

Sheet Metal Units

Coil, sheet and die handling for press shops and shearing lines.

Safety First

Safety Features As Standard

Overload Clutch

Slip clutch / load limiter prevents lifting beyond rated capacity.

⬆ Hook Travel Limits

Precision limit switches stop the hook at top and bottom extremes.

DC Disc Brake

Spring-applied electromagnetic brake holds full load on power failure.

Thermal Motor Protection

Embedded thermistors cut supply before winding temperatures damage the motor.

Grade-80 Load Chain / IWRC Rope

Certified lifting media with 5:1 minimum factor of safety.

Low-Voltage Pendant

42V control circuit pendant with mushroom-head emergency stop.

FAQ

Questions Buyers Ask Us

We build wire rope hoists from 0.5 to 30 Ton, for monorail beams, single girder cranes and standalone winch duty. Every unit is designed to IS:3177 / IS:4137 and FEM 1.001 duty classifications, and custom capacities are engineered on request.

Wire rope hoists suit medium to heavy capacities and continuous duty with faster lifting speeds; chain hoists are more compact and economical for lighter, intermittent-duty applications.

Yes, we supply wire rope hoists as loose units for mounting on your existing crane, monorail or fixed structure.

The drum is machined from seamless pipe with precision-cut helical grooves matched to the rope diameter. Correct groove pitch stops the rope crossing over itself, which is the single biggest cause of premature rope wear in Indian workshops.

Standard units are 4/1 and 4/2 reeved; 8/4 is used on higher capacities where true vertical lift is required. True vertical lift keeps the hook plumb through the whole hoisting range, so the load does not drift as it rises.

A rotary geared limit switch cuts top and bottom hoisting travel, with a separate emergency upper limit as a backup. Braking is by fail-safe DC electromagnetic disc brake that clamps automatically the instant power is lost.

Yes. Tell us the beam section, flange width and rail radius and we build the trolley to suit — flange-riding or rail-mounted, with adjustable wheel gauge for standard ISMB sections.

Routine checks are rope condition and lubrication, brake lining thickness, gearbox oil level and limit-switch operation. With scheduled servicing, our units routinely run beyond a decade in two-shift duty.
